We service a wide range of industries, including marine, electrical, military, and automotive, just to name a few. Fall River Manufacturing’s high-quality domestic manufacturing capabilities are simply unmatched. We combine meticulous forming techniques, a knowledgeable staff, and state-of-the-art equipment & processes to pursue the greatest products for our partners.

Materials

Stainless Steel: 18-8, 302HQ, 304, 304L, 309, 316, 316L, 410, 430, 431, A-286
Aluminum 2014, 2024, 6061, 7075
Silicon Bronze, Brass, Copper, NiCu400

SIZE RANGES

American Standard: #8 thru 7/8” (max. length 8”)
Metric: M4 thru M22 (max. length 200mm)
Nut sizes: 1/4 (M6) through 7/8 (M22)

SIZE RANGES & MATERIALS

Types

Hex Cap Screw

Hex Flange Screw

Socket Screw

(Button/Flat)

Tapping Screw

Machine Screw

Socket Cap Screw

(regular head/low head)

Carriage Bolt

Regular / Short Neck)

Ribbed Neck Bolt

Solid Rivet

Projection Weld Stud

(U3, TD, T3, UR)

Thread Cutting Screw

Hex Nut - Various Patterns

Head Styles

Flat Countersunk

82˚ 90˚ 100˚
Undercut Heads

Round

Oval

Pan

Binding

Truss

Fillister

Hex

Trimmed
Fully Upset
Indented

Hex Washer

Trimmed
Fully Upset
Indented

Hex Flange

Square

Rectangular

Socket Cap

Penta

Drives

Plain

Sawed Slot

Cross Recess

Cross Recess

Hex Recess

Square Recess

6 Lobe Recess

One Way Slot

Slot Phillips

Slot Square Recess

Phillips Square Recess

Security Pin

Points

Header Point

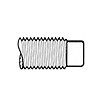

Dog Point

Half Dog Point

Cone Point

Cup Point

Threads

NC

NF

A

AB

B

F

Thread Forming

BF

C

U

Triple Lead

Quad Lead

Knurling

DOWNLOAD OUR
MEASUREMENT
CONVERSON CHART
xx

MANUFACTURING STANDARDS

ISO | IFI | ANSI | ASTM | SAE

FASTENER QUALITY ACT

FQA | DFARS | RoHS
